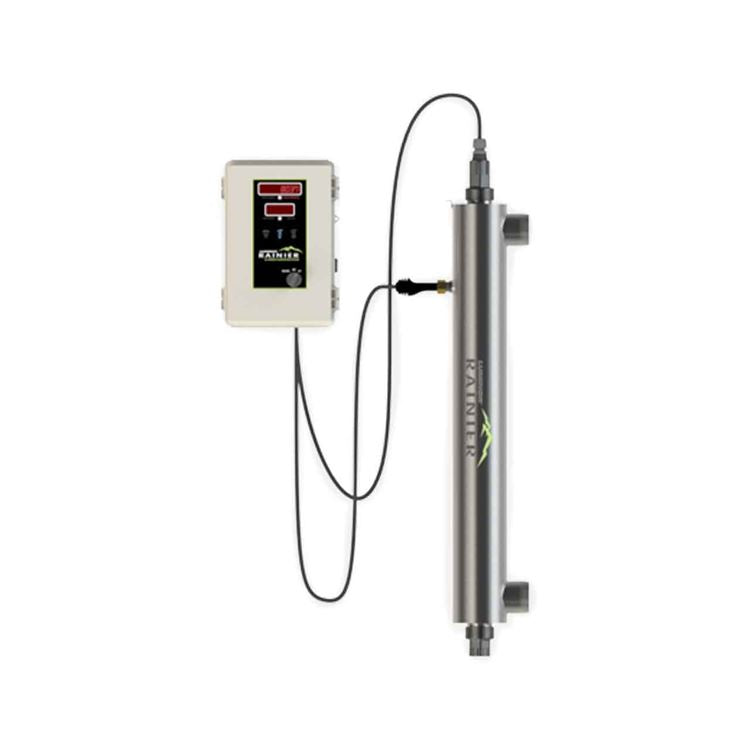

Luminor Rainier 85 gpm Light Commercial UV System LR6-855
This Genuine LUMINOR RAINIER LR6-855 is a light COMMERCIAL/INDUSTRIAL High Flow UV System designed to provide the ultimate protection against microbiological threats such as e-coli and coliform bacteria. The RAINIER LR6 series of UV systems incorporates high quality low pressure, amalgam (LP-AM) coated UV lamps offering a consistent output throughout their12,000-hour life. This system features a discrete 254nm Teflon™-based UV sensor, continuous LED display lamp life monitoring, axial flow, 316L polished stainless steel reactors manufactured to ASME standards with 85 gpm flow rate at 95% UVT at a dose of 30mJ/cm².
Luminor RAINIER 6.0 Light Commercial UV Applications:
- DISINFECTION: Choose Your Required Dose for Applications that Include Restaurants, Nursing Homes, Campgrounds, Agricultural, Food Services, Schools, Marine, ect.
- HOT WATER (HW): For Use in Hot Water Applications Including Recirculation Loops, Showers, Cooling Towers, ect., Designed for the Reduction of Legionella.
- LOW UVT (50): For Applications where Water Quality may Approach 70% UVT or Less, Choose the Low UTV Systems to Increase the Operational Performance and Reduce Nuisance Alarms.
- TOC: For the Reduction of TOC (Total Organic Carbon) using UV Lamps at 185 nm Output.
✔️ HIGH OUTPUT 85 GPM capacity in a small package
✔️ Available in 110V/60Hz. or 230V/50-60Hz(IEC power cords required) MUST specify voltage when ordering
✔️ VERTICAL or HORIZONTAL INSTALLATION simplifies installation based on space requirement
✔️ MADE IN CANADA quality for long life
✔️ LAMP COUNTDOWN TIMER for lamp replacement reminder
✔️ LONG 12,000 HOURS OR 500 DAYS LAMP LIFE for long lamp change intervals.

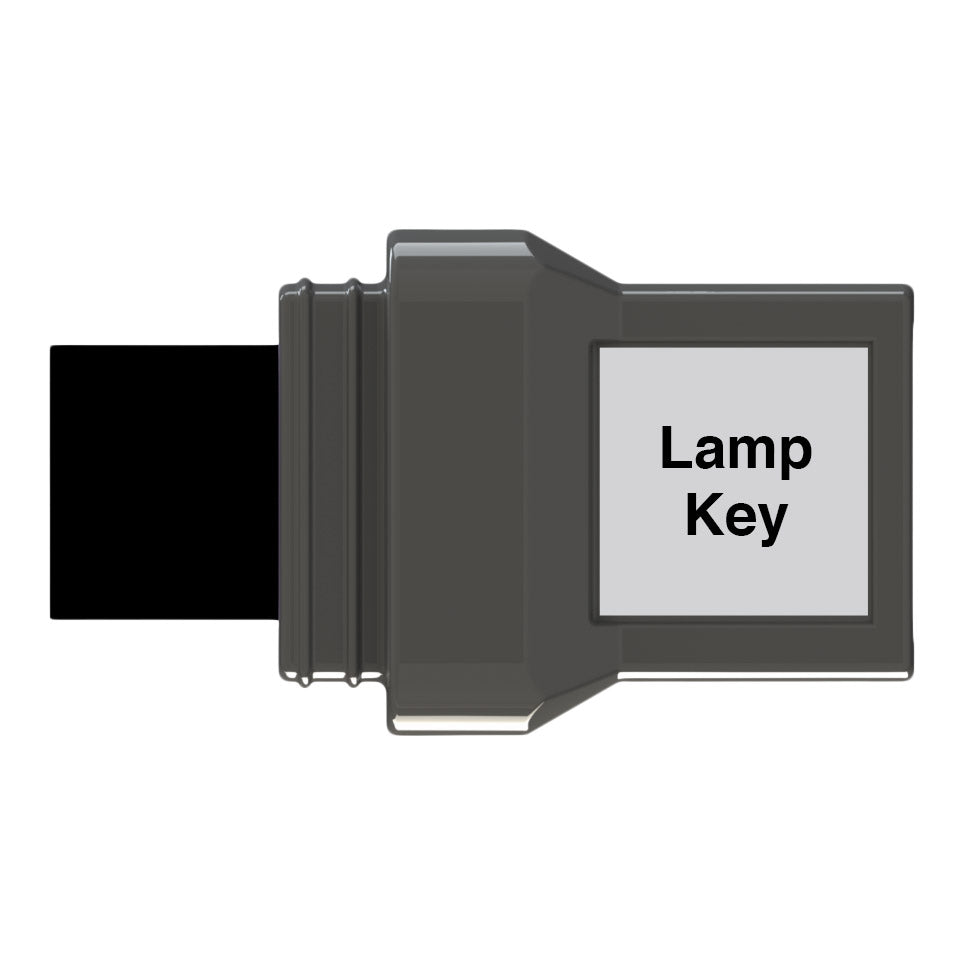

✔️ LUMINOR’s LUMI-LOC™ LAMP CONNECTOR.Lamp changes with an effortless ¼ turn of the Connector
✔️ VISIBLE and AUDIBLE ALARM for lamp change and Lamp Out notifications
✔️ EASY DIY INSTALL AND MAINTENANCE to save you money.
✔️ HEAVY GAUGE 316LSS COMMERCIAL STEEL MANIFOLD for long life
✔️ 2.0” FNPT INLET and OUTLET CONNECTIONSfor plumbing versatility.
✔️ 220 WATTS POWER CONSUMPTION for economical operation
✔️ SS REACTOR DIMENSIONS – 4” x 47” x 7”compact, will fit anywhere
✔️ 10/3/1 YEAR WARRANTY – 10 years on the SS Reactor, 3 years on the electronics, 1 year on UV lamp and Sleeve.
✔️ COMPATIBLE OPTIONS: UV sensor module, remote monitoring cable

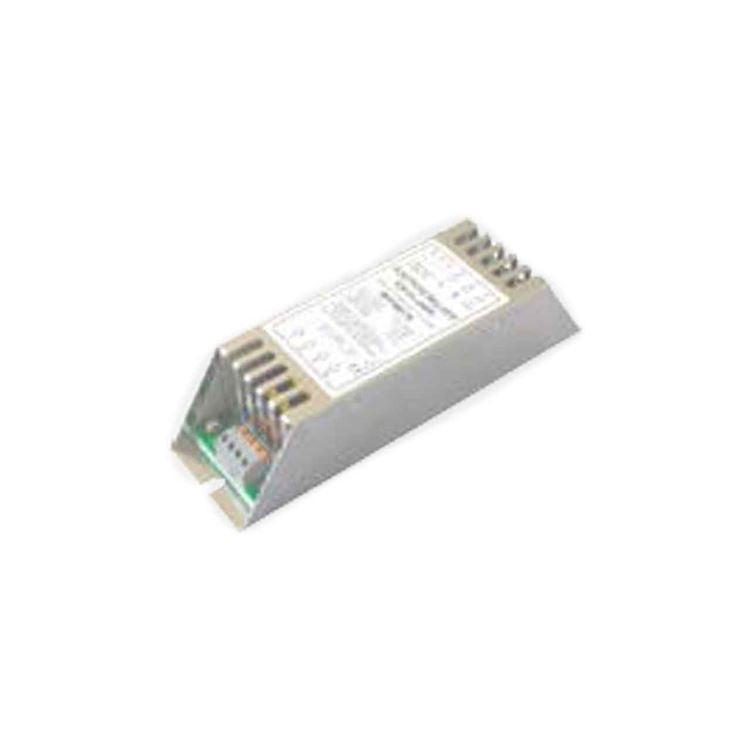

Replacement LAMP: RL-1000A, Sleeve: RQ-1000, Controller: RB-R1.2
Product # UVS LR6-855
