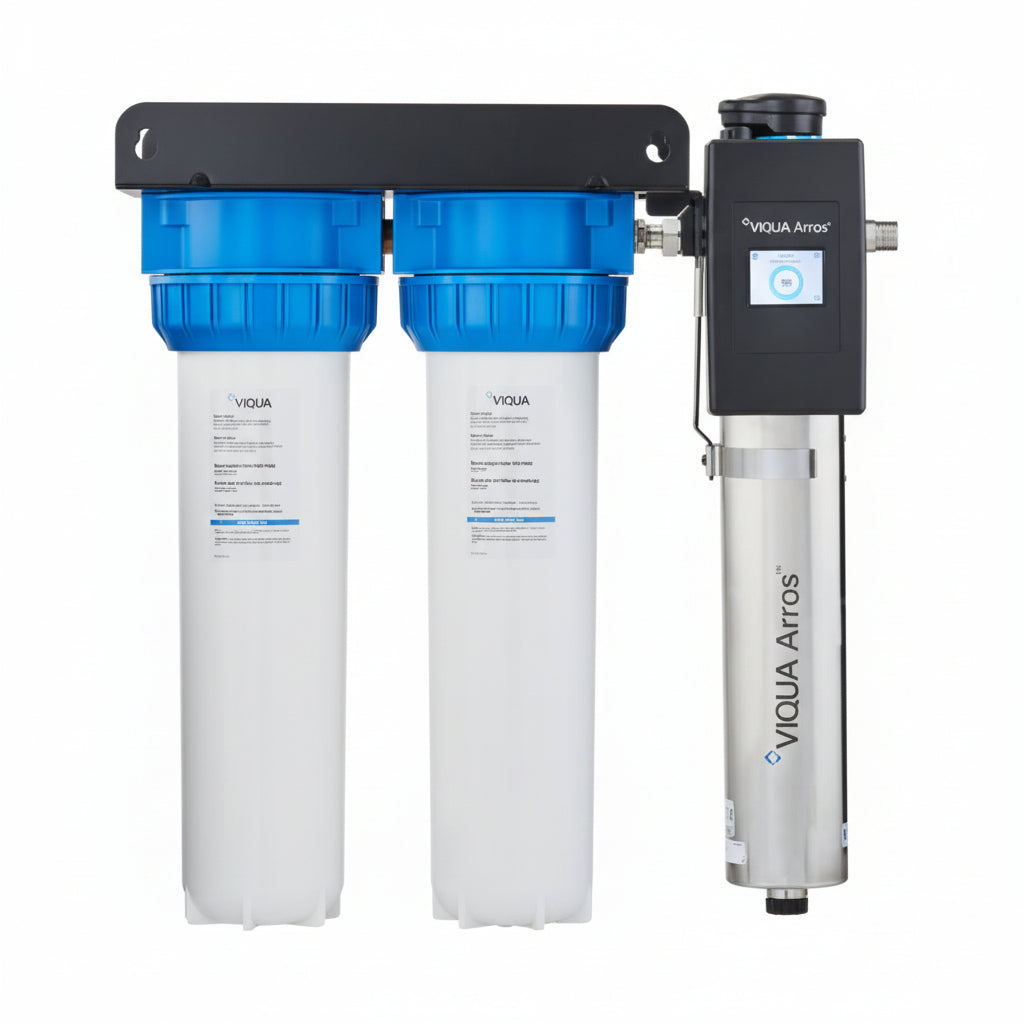

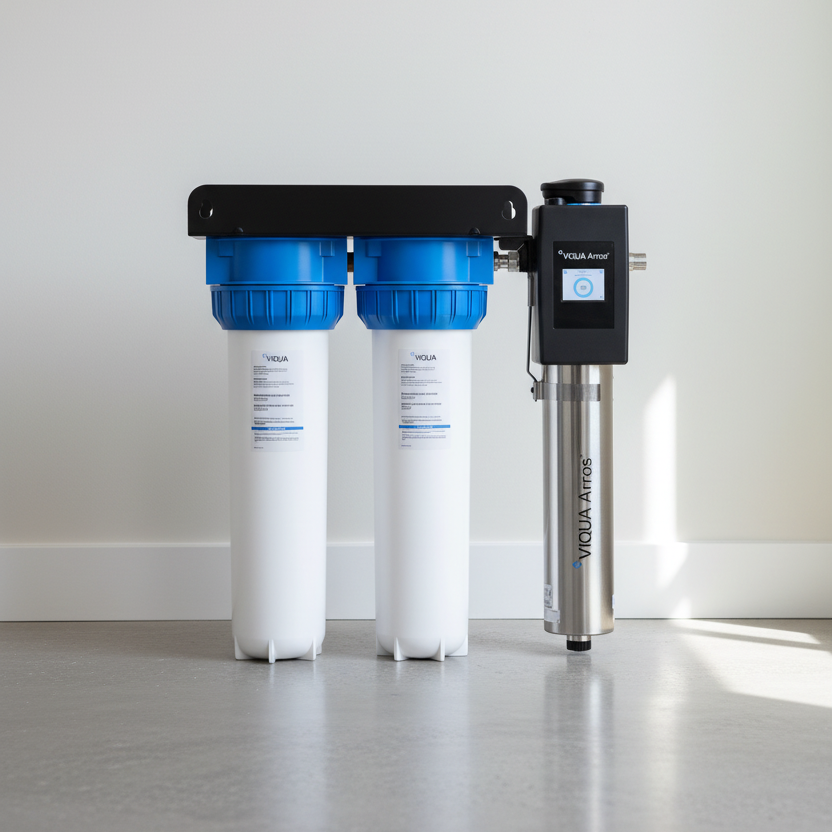

Viqua Arros 22-IHS22 Whole Home UV Water Treatment System
Viqua Arros 22-IHS22 Whole Home UV Water Treatment System
Whole-home UV water treatment system designed to disinfect water by neutralizing bacteria and microorganisms without chemicals (22 GPM).
Click Here For Full Product Details
Click Here For Full Product Details
The VIQUA Arros 22-IHS22 Whole Home UV System provides powerful ultraviolet disinfection to protect your household water from harmful microorganisms. Designed for whole-home point-of-entry treatment, this advanced system combines high-output UV purification with integrated pre-filtration, delivering clean, safe water throughout your entire home.
With its compact design, intelligent monitoring features, and simplified installation, the Arros 22-IHS22 offers professional-grade water protection while remaining easy to maintain.
Advanced Whole-Home Water Protection
The Arros 22-IHS22 uses ultraviolet light to neutralize harmful microorganisms commonly found in untreated or well water. The system has been microbiologically validated to inactivate organisms such as:
- Cryptosporidium
- Giardia
- Escherichia coli (E. coli)
- Fecal coliform bacteria
This ensures your home receives water that meets high safety and treatment standards.
Integrated Pre-Filtration
Before water reaches the UV chamber, the system filters out common contaminants that can interfere with UV treatment.
Included filtration components:
- Sediment Filter – captures dirt, rust, and particulate matter
- Carbon Block Filter – reduces odors, chlorine, and discoloration
The two 20" three-piece filter housings make cartridge replacement quick and simple.
Replacement Filters
- Sediment Filter: CMB-520-HF
- Carbon Block Filter: C2-02PB

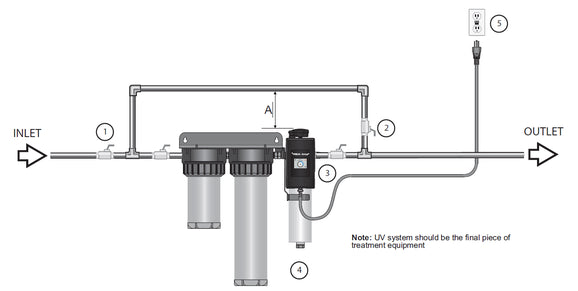

Simplified Installation
The Arros system is engineered to reduce installation time and complexity.
Key design features include:
- Tidal™ chamber design aligns inlet and outlet ports on a single plane for easier plumbing
- PolyProtect™ shield safely blocks UV light, allowing direct plumbing to PEX and other polymer materials
- Elongated steel mounting bracket for secure and convenient installation
Smart Monitoring & Easy Maintenance
Maintaining your UV system is straightforward thanks to built-in monitoring tools and user-friendly design.
Features include:
- LCD touchscreen display with alerts for lamp replacement and service reminders
- All-in-one lamp unit for easy handling and replacement
- Threaded drain plug for quick and clean servicing
Replacement Lamp/Sleeve: VA22LU
Space-Efficient Design
The Arros 22-IHS22 uses enhanced UV dose efficiency to deliver powerful treatment in a compact footprint. The smaller chamber and lamp help save installation space without sacrificing performance.
Ideal Applications
This system is designed for a variety of residential water treatment applications, including:
- Whole-home water disinfection
- Well water treatment systems
- Cottage or rural properties
- OEM and integrated water treatment setups
Technical Specifications
Part Number: ARROS22-IHS22
- Flow Rate: 22 GPM (83.3 LPM) at 30 mJ/cm²
- Connection Size:
- Inlet: 1" FNPT
- Outlet (Combo Port): 1" MNPT / ¾" FNPT
- Dimensions: 24.95″ × 27.5″ × 9.0″
- Filter Housing: Two 20″ three-piece housings
- Power Consumption: 60 W
- Shipping Weight: 50 lbs (20.9 kg)
Product Resources
Request Pricing & Availability
This product requires an inquiry before purchase due to brand policies. Complete the form below and our team will follow up promptly with pricing, availability, and any recommendations you may need.
Viqua Arros 22-IHS22 Whole Home UV Water Treatment System
The VIQUA Arros 22-IHS22 Whole Home UV System provides powerful ultraviolet disinfection to protect your household water from harmful microorganisms. Designed for whole-home point-of-entry treatment, this advanced system combines high-output UV purification with integrated pre-filtration, delivering clean, safe water throughout your entire home.
With its compact design, intelligent monitoring features, and simplified installation, the Arros 22-IHS22 offers professional-grade water protection while remaining easy to maintain.
Advanced Whole-Home Water Protection
The Arros 22-IHS22 uses ultraviolet light to neutralize harmful microorganisms commonly found in untreated or well water. The system has been microbiologically validated to inactivate organisms such as:
- Cryptosporidium
- Giardia
- Escherichia coli (E. coli)
- Fecal coliform bacteria
This ensures your home receives water that meets high safety and treatment standards.
Integrated Pre-Filtration
Before water reaches the UV chamber, the system filters out common contaminants that can interfere with UV treatment.
Included filtration components:
- Sediment Filter – captures dirt, rust, and particulate matter
- Carbon Block Filter – reduces odors, chlorine, and discoloration
The two 20" three-piece filter housings make cartridge replacement quick and simple.
Replacement Filters
- Sediment Filter: CMB-520-HF
- Carbon Block Filter: C2-02PB
Simplified Installation
The Arros system is engineered to reduce installation time and complexity.
Key design features include:
- Tidal™ chamber design aligns inlet and outlet ports on a single plane for easier plumbing
- PolyProtect™ shield safely blocks UV light, allowing direct plumbing to PEX and other polymer materials
- Elongated steel mounting bracket for secure and convenient installation
Smart Monitoring & Easy Maintenance
Maintaining your UV system is straightforward thanks to built-in monitoring tools and user-friendly design.
Features include:
- LCD touchscreen display with alerts for lamp replacement and service reminders
- All-in-one lamp unit for easy handling and replacement
- Threaded drain plug for quick and clean servicing
Replacement Lamp/Sleeve: VA22LU
Space-Efficient Design
The Arros 22-IHS22 uses enhanced UV dose efficiency to deliver powerful treatment in a compact footprint. The smaller chamber and lamp help save installation space without sacrificing performance.
Ideal Applications
This system is designed for a variety of residential water treatment applications, including:
- Whole-home water disinfection
- Well water treatment systems
- Cottage or rural properties
- OEM and integrated water treatment setups
Technical Specifications
Part Number: ARROS22-IHS22
- Flow Rate: 22 GPM (83.3 LPM) at 30 mJ/cm²
- Connection Size:
- Inlet: 1" FNPT
- Outlet (Combo Port): 1" MNPT / ¾" FNPT
- Dimensions: 24.95″ × 27.5″ × 9.0″
- Filter Housing: Two 20″ three-piece housings
- Power Consumption: 60 W
- Shipping Weight: 50 lbs (20.9 kg)
