UV Dynamics 10GPM Minirack MR320E-TP2/220
UV Dynamics 10GPM Minirack MR320E-TP2/220

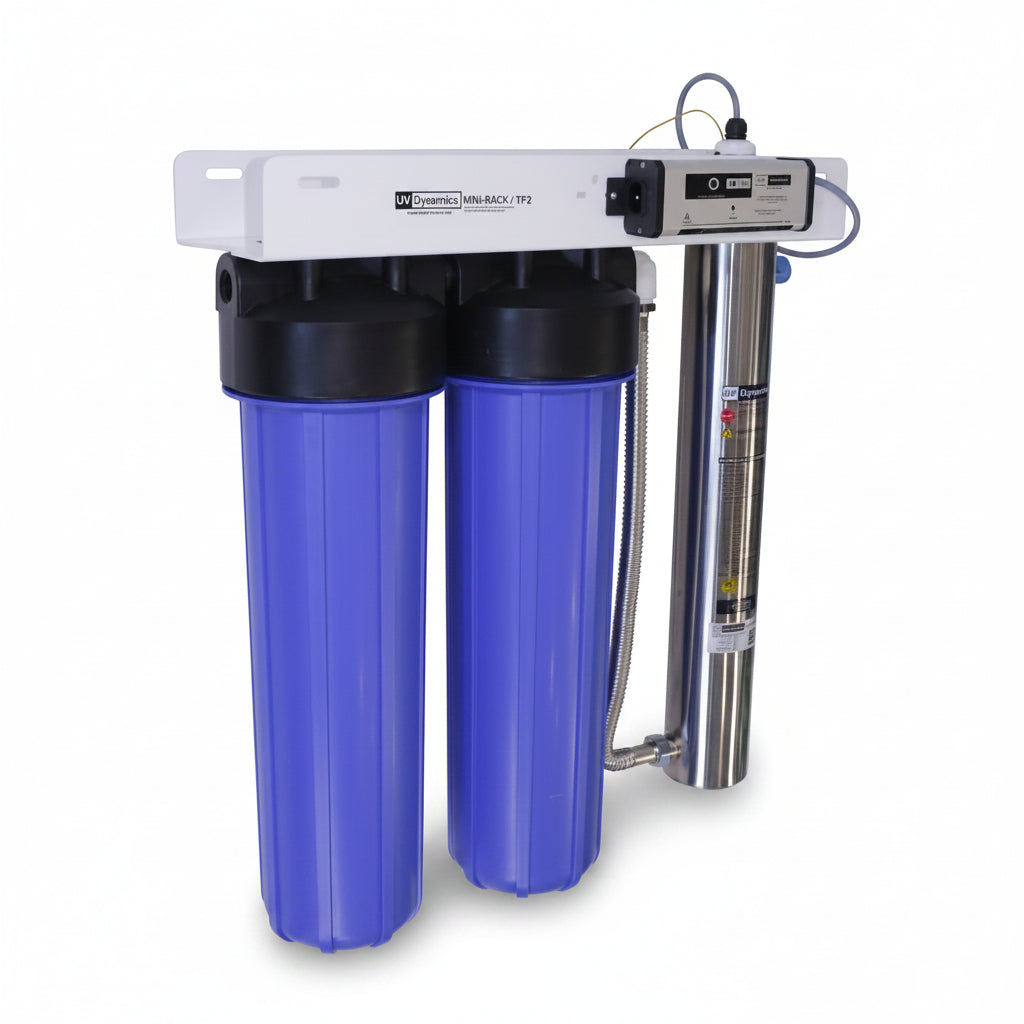

This is a compact point-of-entry UV disinfection system for residential or cottage water treatment. This pre-assembled rack includes a UV chamber and two 20" Big Blue filter sumps that accept standard 20" x 4.5" filter cartridges for pre-filtration. Filters are sold separately.
Product Resources
Features & Details
Protect your family's water with the UV Dynamics 10 GPM UV Mini-Rack System. This compact, pre-assembled rack combines high-performance ultraviolet disinfection with dual 20" Big Blue filter housings, making it an excellent solution for treating bacteria, viruses, and other microorganisms in residential well water applications.
Please Note: Sediment and carbon filters are not included and must be purchased separately.
Features
- Delivers up to 10 GPM of UV-treated water
- Reversible mounting bracket for easier installation
- 3/4" MNPT GloGuard™ ports compatible with PEX plumbing
- Dual 20" Big Blue filter housings certified to NSF 42 standards
- Double O-ring filter housings help prevent leaks
- Tool-free lamp connector simplifies maintenance
- Microprocessor-controlled ballast with:
- Audible and visual lamp failure alarms
- Lamp life remaining display
- Annual lamp replacement reminder
- Long-life UV lamp rated for 9,000 hours
- 304 stainless steel reactor chamber
- Manufactured in Canada with USA-made UV lamps
- Integrated 1/4" drain plug for easier winterization
Performance
- 8 GPM (30 LPM): 40 mJ/cm² UV dose
- 10 GPM (37 LPM): 30 mJ/cm² UV dose
Electrical Requirements
- 120V
- 47–63 Hz
- 0.7 Amp
Water Quality Requirements
For proper UV performance, incoming water should meet the following specifications:
- Maximum Hardness: 7 grains per gallon (120 ppm)
- Maximum Iron: 0.3 ppm (mg/L)
- Maximum Turbidity: Less than 1 NTU
- Minimum UV Transmittance: 75%
- Water must be visibly clear (not cloudy or murky)
Rack Dimensions
- Height: 30"
- Width: 23"
- Depth: 8"
Replacement Parts
UV Lamp
-
Part #400152
Quartz Sleeve
-
Part #400151
Ballast (Model MF-SLE120)
-
Part #400235
O-Ring Set A
-
Part #400202
Spring
-
Part #400111
Filters

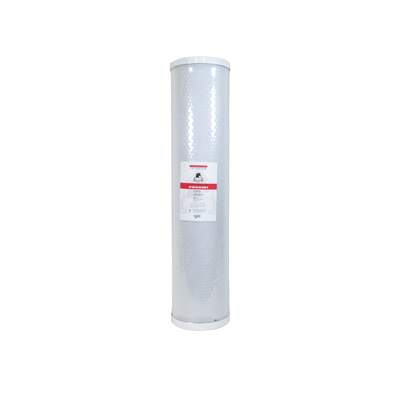

- Accepts standard 20" x 4.5" Big Blue filters
- At least one 5-micron sediment filter is recommended
Compatible Replacement Parts
Helpful Product Videos
Watch helpful videos about installation, maintenance, replacement, and product details.
