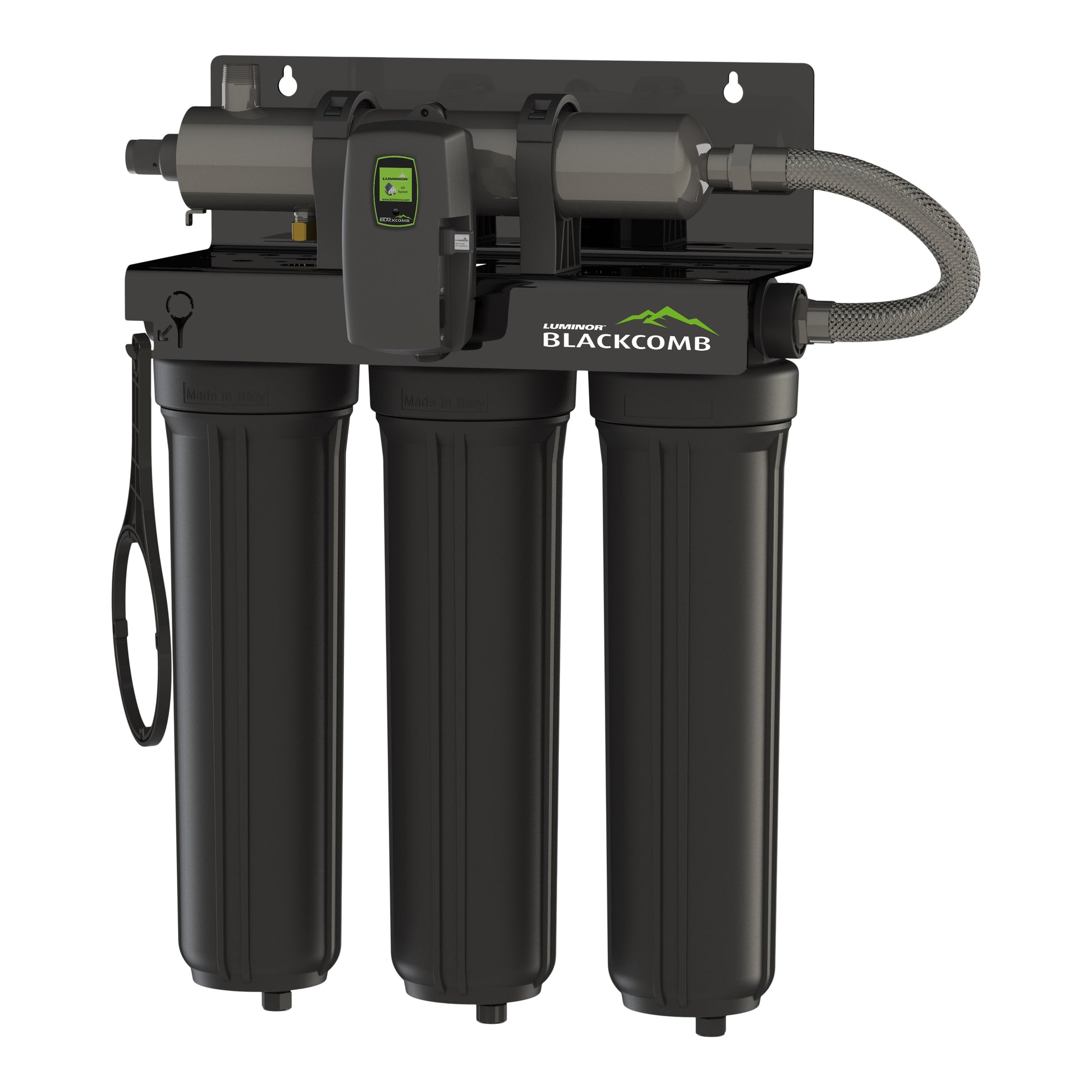

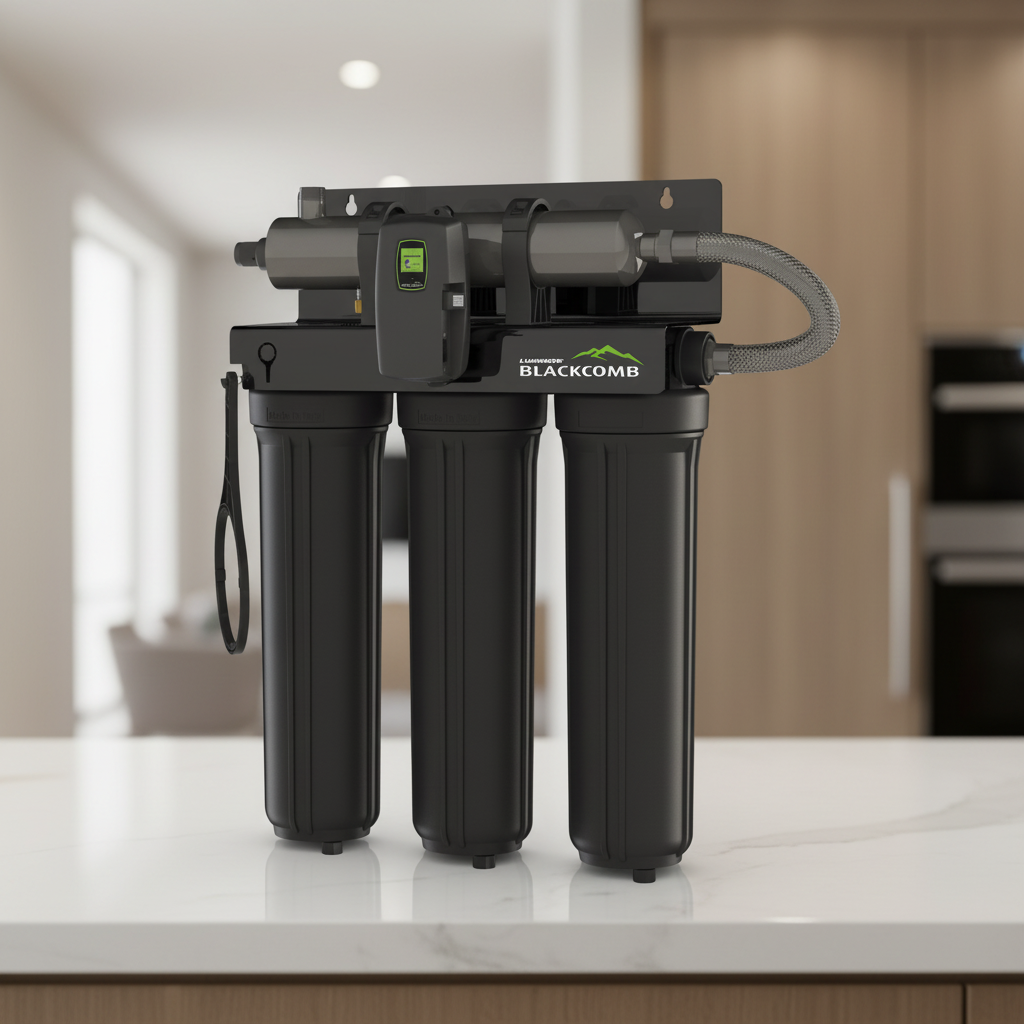

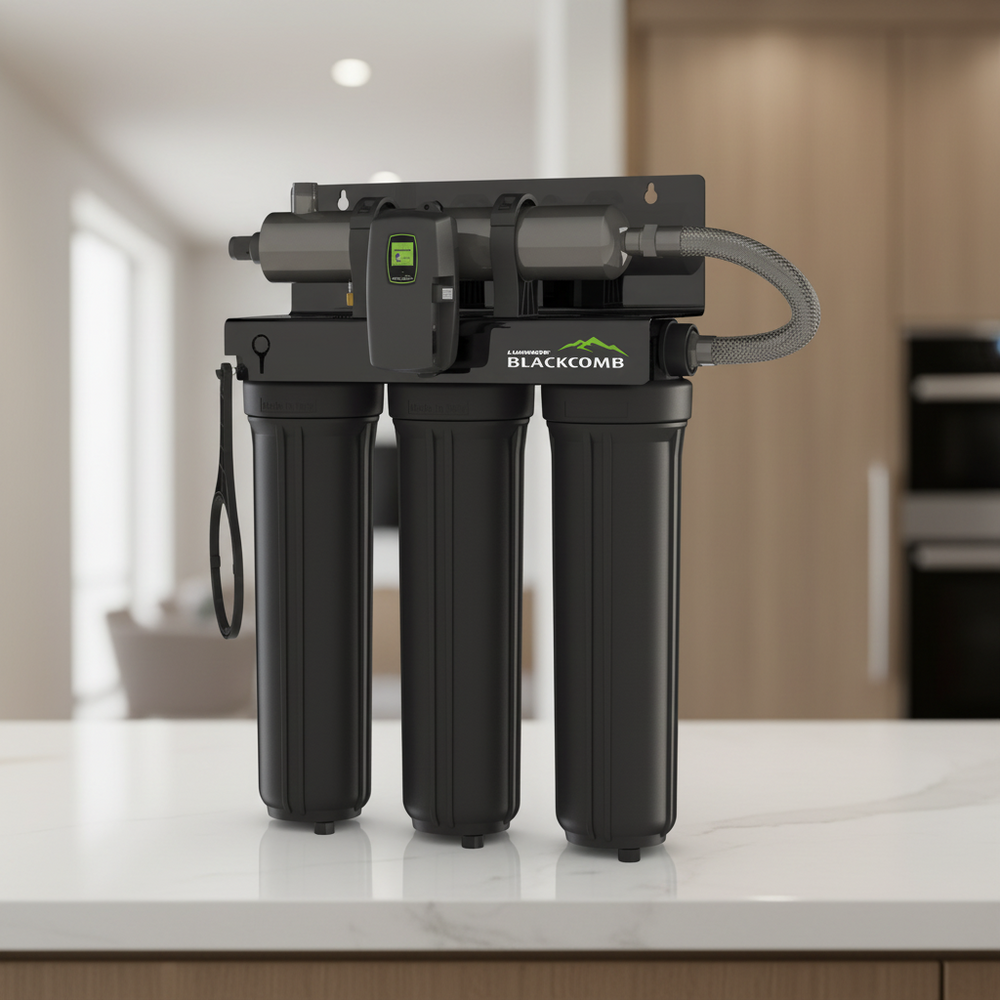

Luminor Blackcomb Cross-Over 15 gpm Rack UV System LBH5-Z222-NC (No Cartridges)
Luminor Blackcomb Cross-Over 15 gpm Rack UV System LBH5-Z222-NC (No Cartridges)
The Luminor Blackcomb Cross-Over LBH5-Z222 (NC version) combines a triple 20" Big Blue filter rack with 15 GPM high-output UV disinfection for whole-home protection. Filter cartridges are NOT included; the housings ship empty. Contact us for a cartridge recommendation based on your water test results.
Product Resources
🚚 Free Shipping on Orders Over $100
Features & Details
Three-stage filter rack + UV disinfection, ready for the cartridges you choose.
⚠️ Filter cartridges are NOT included. This is the NC (no cartridge) version: the three filter housings ship empty. The right cartridges depend on your water, so please contact us before ordering and we'll recommend cartridges based on your water test results and needs.
The BLACKCOMB Cross-Over pairs a triple 20" Big Blue filter rack with high-output UV to neutralize harmful bacteria like E. coli and coliform, delivering safe water throughout your entire home. This is the NC (no cartridge) version: the housings ship empty so you can fit the sediment, scale-reduction and carbon cartridges that suit your water.
Key Features
✔️ Filter Rack + UV in One Unit – Integrated trio housing rack and UV chamber
✔️ Triple 20" Big Blue Housings – Accepts standard 4.5" x 20" cartridges (cartridges not included)
✔️ 15 GPM Whole-Home Flow Rate – Strong output for full-house coverage
✔️ Kills Harmful Bacteria – UV disinfection neutralizes E. coli and coliform
✔️ Filtration Before UV = Better Results – Removing particles first lets the UV work effectively
✔️ Built for Real Installations – Horizontal chamber and reversible design for easier setup
✔️ Made in Canada – Premium components built for long-term reliability
Typical Cartridge Setup (not included, sold separately)
A common configuration is shown below, but your water may call for something different. Contact us for a cartridge recommendation based on your water results.
✔️ 1st Filter Housing: 5-micron sediment cartridge (LC-20S)
✔️ 2nd Filter Housing: Scale-reduction cartridge (LC-20WS)
✔️ 3rd Filter Housing: High-capacity carbon cartridge (LC-20AC)
Smart Monitoring + Low Maintenance
✔️ Lamp countdown timer with replacement alerts
✔️ Audible and visual lamp-change reminders and lamp-out indicators
✔️ Long lamp life — up to 10,000 hours (~14 months)
✔️ High-output 45W UV lamp (RL-420HO)
Built for Long-Term Reliability
✔️ 316L stainless steel reactor and manifold for corrosion resistance
✔️ Axial flow design for consistent UV exposure
✔️ 1" MNPT connections for easy installation
✔️ Compatible with upgrades like UV sensor, solenoid shutoff, and remote alarm
Performance Specifications
✔️ Flow Rate: 15 GPM (56.8 L/min) at a 30 mJ/cm² dose (or 12 GPM at 40 mJ/cm²)
✔️ UV Chamber: 316L stainless steel reactor with 45W high-output UV lamp (RL-420HO) and quartz sleeve (RQ-420)
✔️ Port Size: 1" MNPT
✔️ Electrical: 90–265V / 50–60Hz
Dimensions
✔️ 9.5" D x 26.5" W x 33.5" H
What's Included
✔️ BLACKCOMB Cross-Over rack UV system with trio filter housings (empty)
✔️ High-output UV lamp (RL-420HO) and quartz sleeve (RQ-420)
✔️ Filter cartridges are not included (contact us for a recommendation based on your water)
Replacement Parts
✔️ Lamp: RL-420HO
✔️ Sleeve: RQ-420

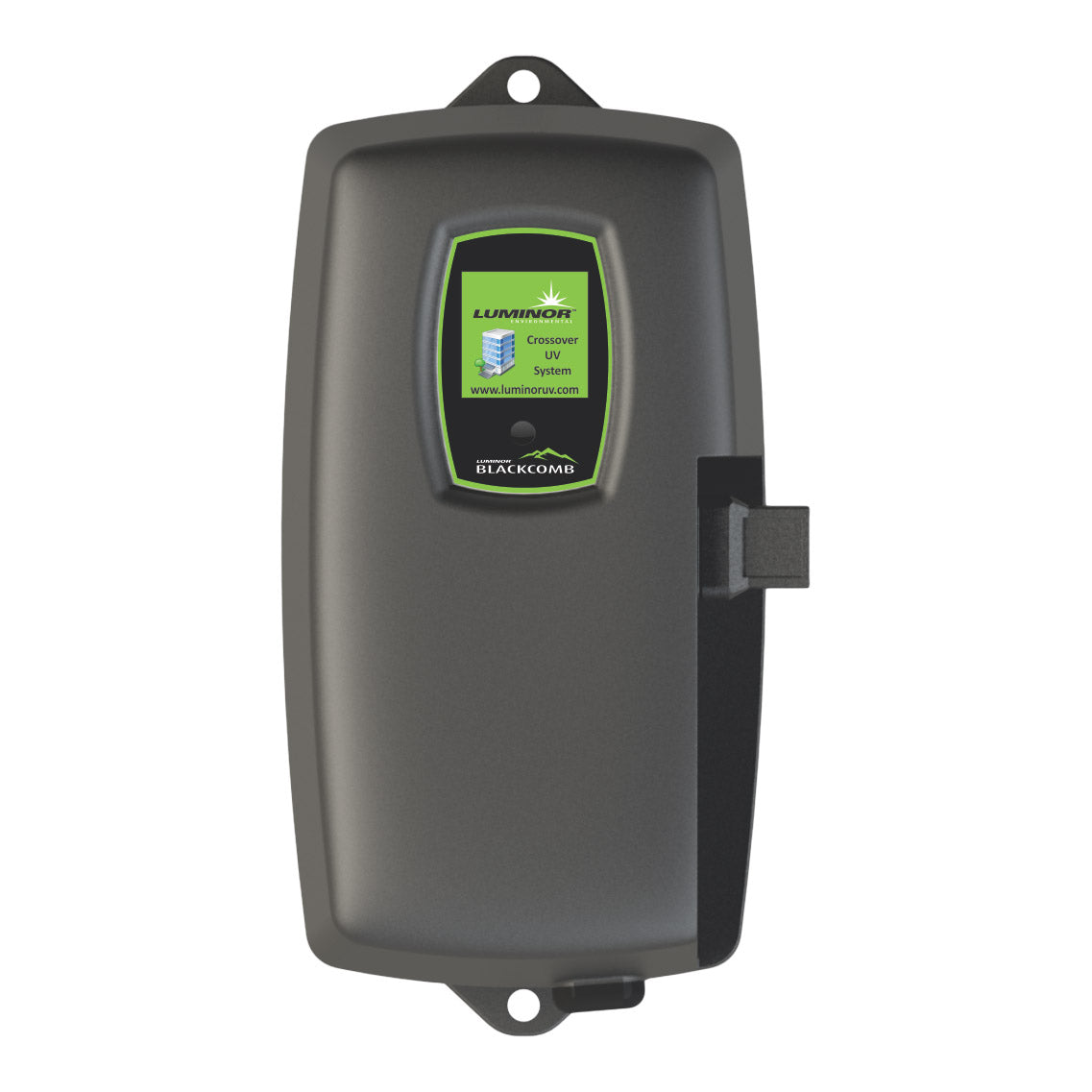

✔️ Controller: RCHO-56.12
✔️ Sediment filter (sold separately): LC-20S
✔️ Scale-reduction filter (sold separately): LC-20WS
✔️ Carbon filter (sold separately): LC-20AC
Warranty
✔️ 10 years: stainless steel reactor
✔️ 3 years: electronics
✔️ 1 year: lamp and sleeve
Product #: UVS LBH5-Z222-NC
Helpful Product Videos
Watch helpful videos about installation, maintenance, replacement, and product details.
