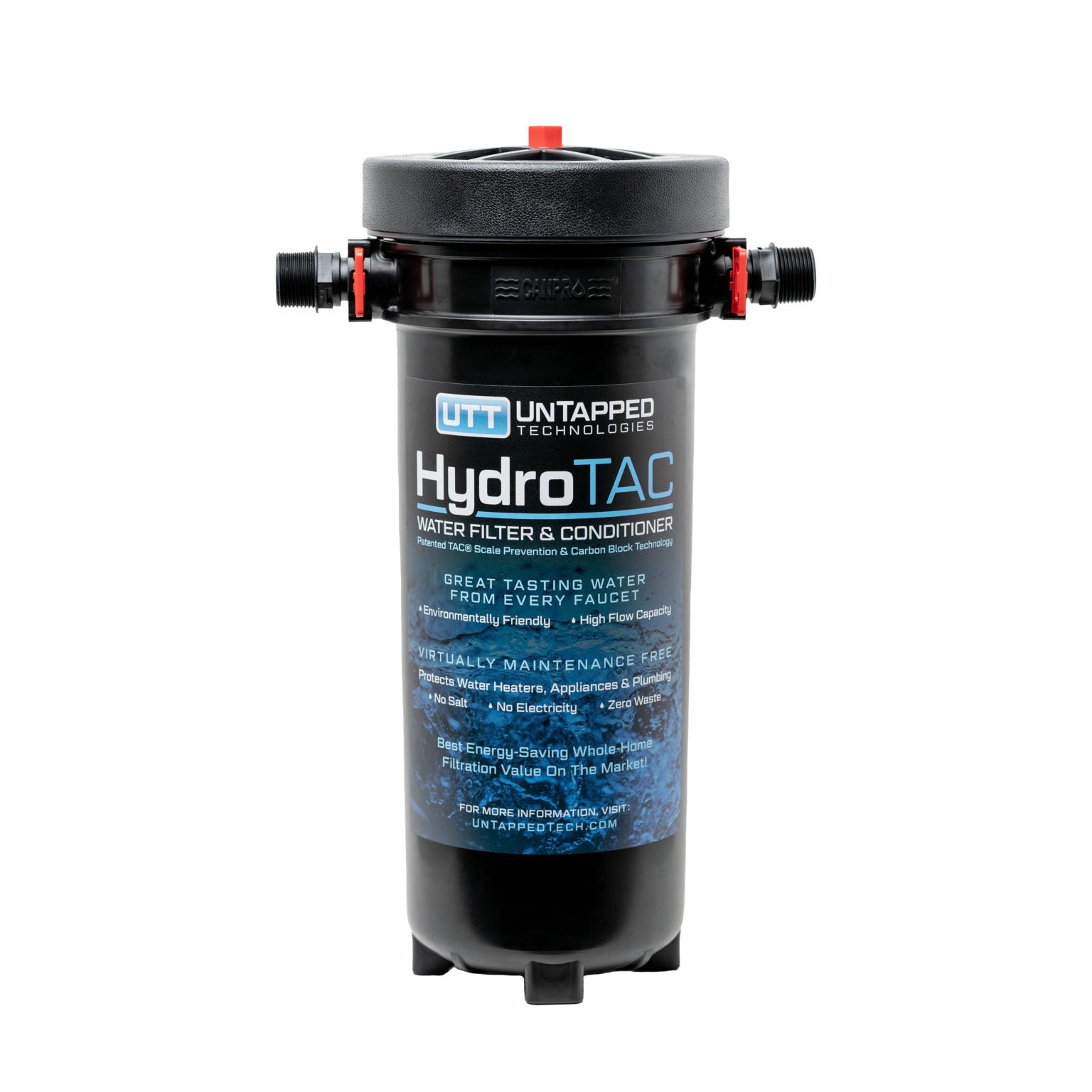

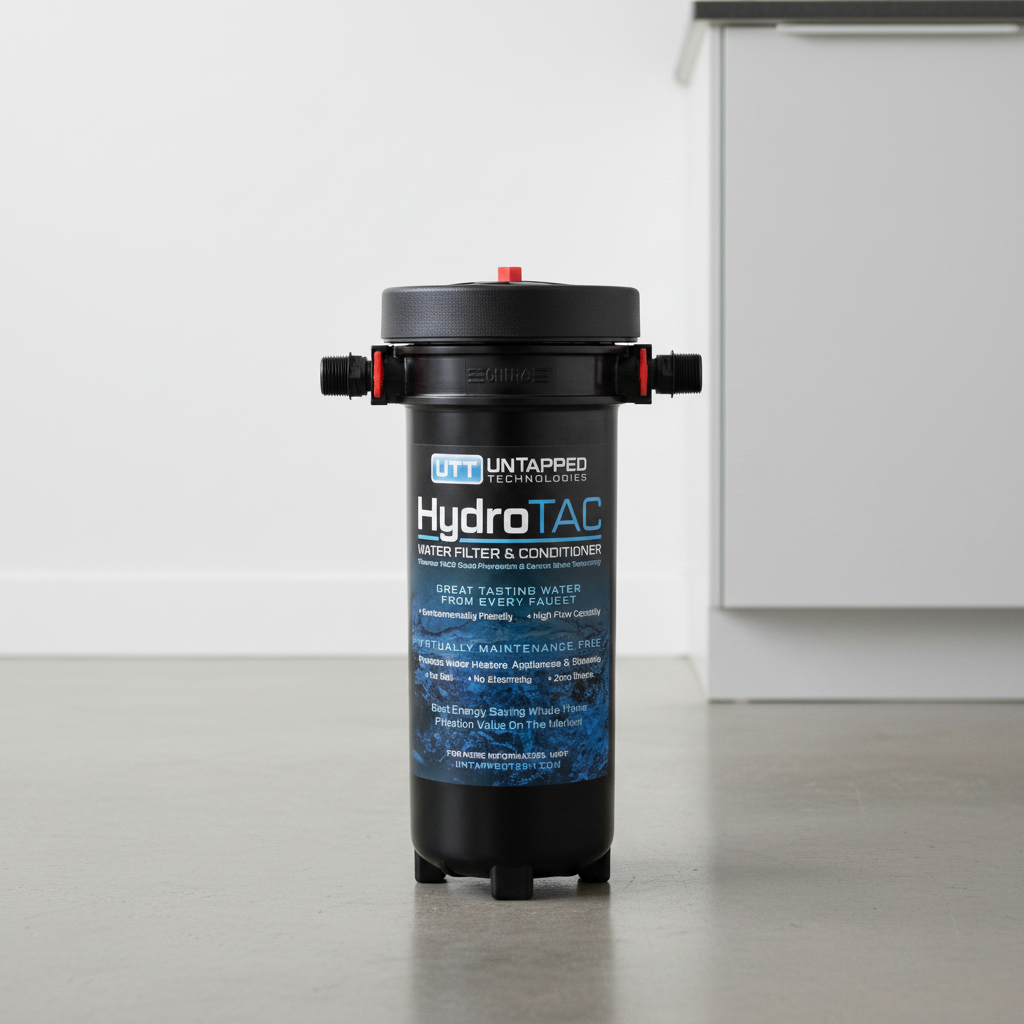

Water softening component designed to reduce hardness minerals and help prevent scale buildup throughout the home, helping address chlorine taste & odor, iron (9" x 9", 10 GPM).
Part #: WD 7100638
Vendor: HydroTAC
Discover the HydroTAC® system, a cutting-edge, salt-free water treatment solution designed as a superior alternative to traditional water softeners. Utilizing advanced Template Assisted Crystallization (TAC)® technology, this system treats your water without adding chemicals or salt, ensuring a healthier home environment. Despite its compact design, HydroTAC® delivers powerful performance by significantly reducing chlorine and other harmful chemicals through its innovative high flow dual stage activated carbon block filtration process.
Backed by multiple independent studies, HydroTAC® is proven to eliminate and prevent up to 99.6% of scale buildup. This revolutionary TAC® technology not only minimizes maintenance needs but also reduces associated costs, while extending the lifespan of all your water heating appliances and plumbing infrastructure.
The activated carbon filtration component is extensively researched and recognized as highly effective in removing PFAS contaminants. Our high-performance carbon block filter binds and reduces a wide range of impurities, enhancing water quality from every tap throughout your home.
Key Benefits
What’s Included in the Package
• Durable Housing and Head Assembly

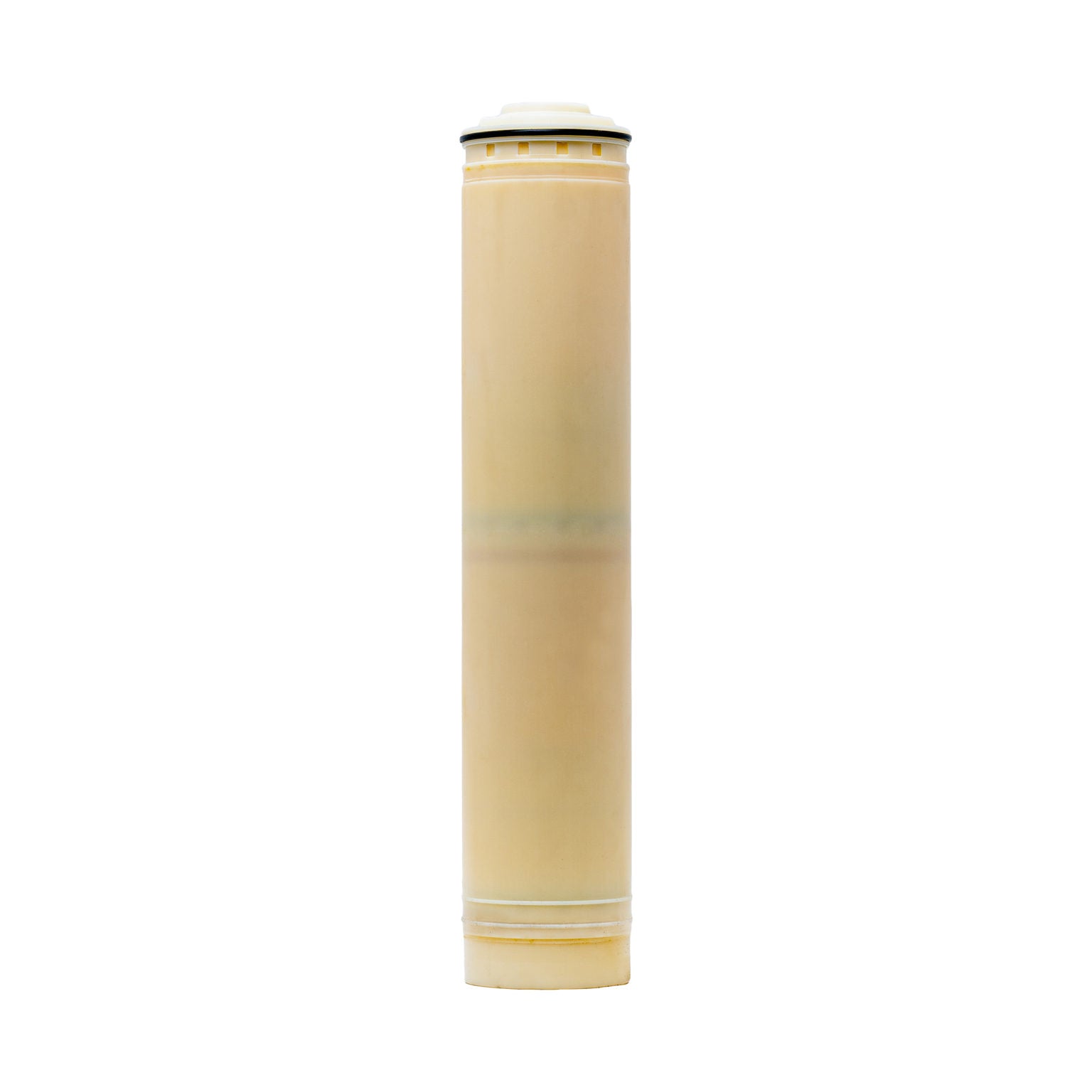

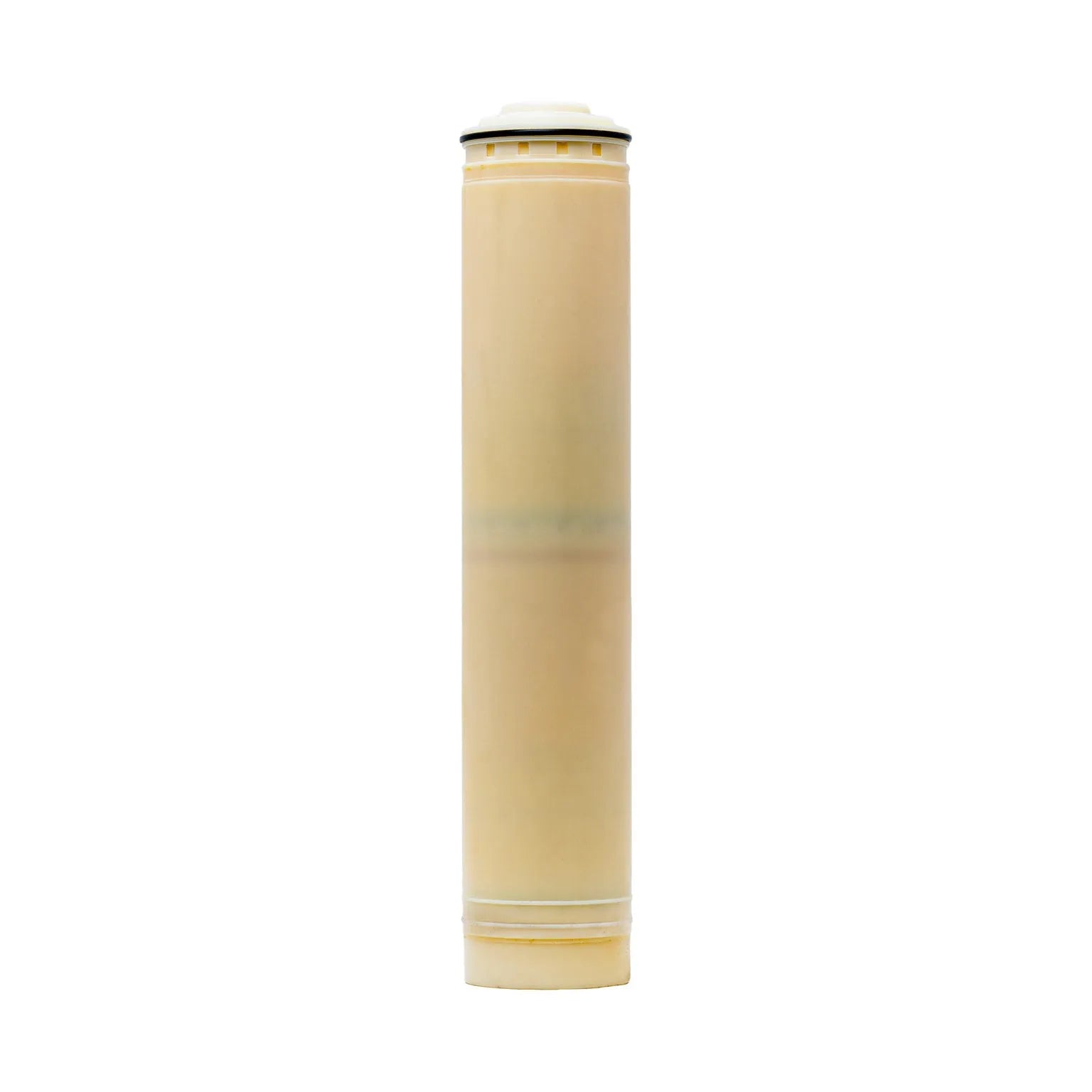

• TAC® Scale Prevention Filter Cartridge

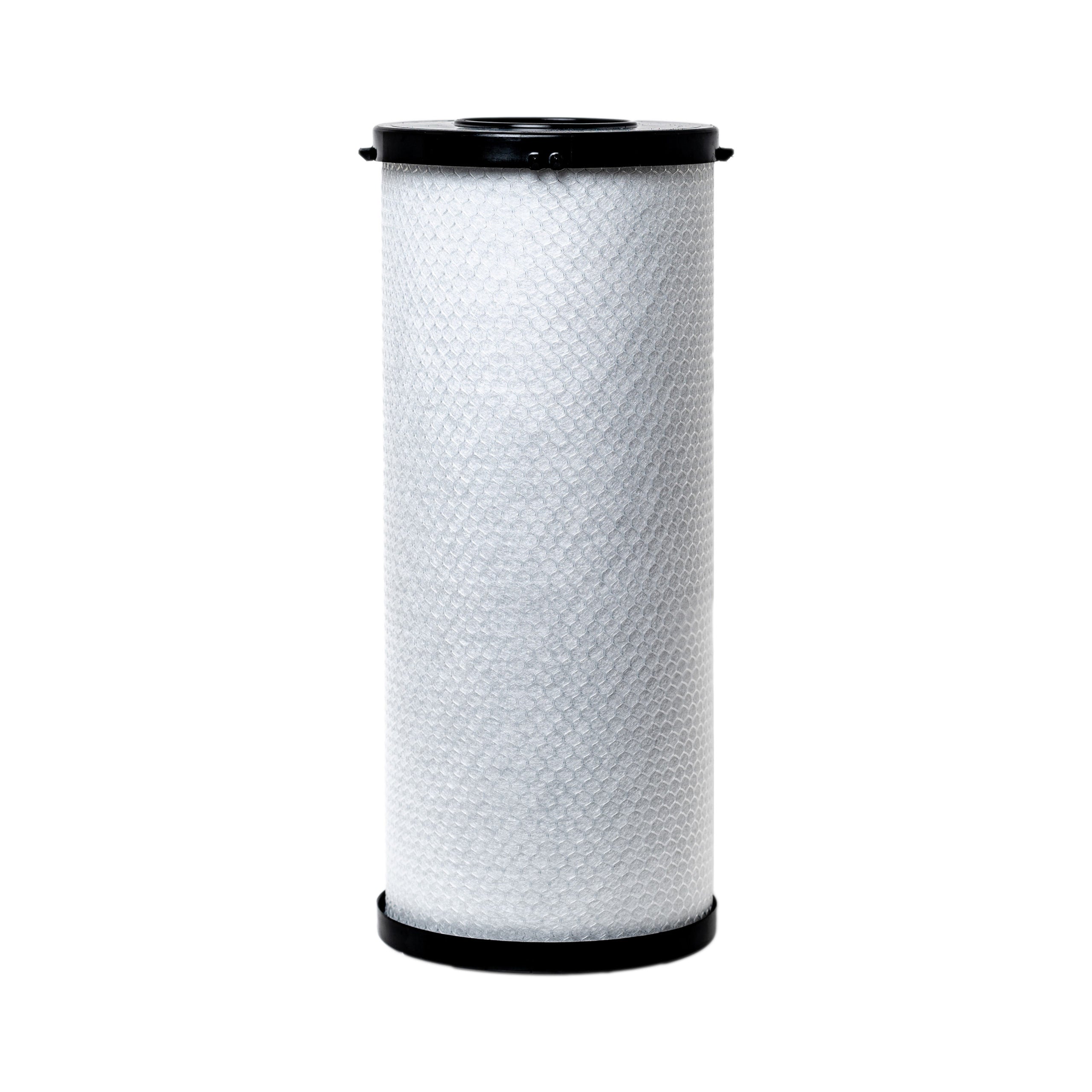

• Radial Flow Carbon Block Filter Cartridge
• Two Inlet / Outlet Red Adapter Locking Pins
• Two 1-inch NPT Inlet / Outlet Adapters
• Outlet Connector
• Multifunction Tool for easy maintenance
• System Mounting Bracket for secure installation
• Pressure Relief Valve for safety
Product Specifications
| Rated Flow | Maximum 10 gpm (37.8 lpm) |
| Operating Temperature | 40 – 104 °F (5 – 40 °C) |
| Operating Pressure | 10 – 90 psi (pressure limiting valve required above 70 psi) |
| Usage Conditions | Indoor use recommended; outdoor installation requires protection |
| Dimensions | 9 in x 9 in x 19 in |
| Net Weight | 16.6 lbs (7.5 kg) |
| Contaminants Reduced | Scale, Sediment, Chlorine Taste and Odor, Various Chemicals |
Recommended Water Conditions for Optimal Performance
| pH Range | 6.5 to 8.5 |
| Maximum Hardness | Up to 75 grains per gallon; ideal below 25 gpg |
| Chlorine Concentration | < 3 ppm |
| Ferrous Iron | ≤ 0.3 mg/L |
| Manganese | ≤ 0.05 mg/L |
| Copper | ≤ 1.3 mg/L |
| Oil & Phosphates | zero* |
| Hydrogen Sulfide | zero* |
*These contaminants must be removed prior to HydroTAC® installation.
Replacement Filter Cartridges: SMF 7100639 and SMF 7100640
Dimensions: 9" Diameter × 9" Width × 19.2" Height
Product #: WD 7100638
