Clack Brine Tank Overflow Elbow and Nut
Clack Brine Tank Overflow Elbow and Nut

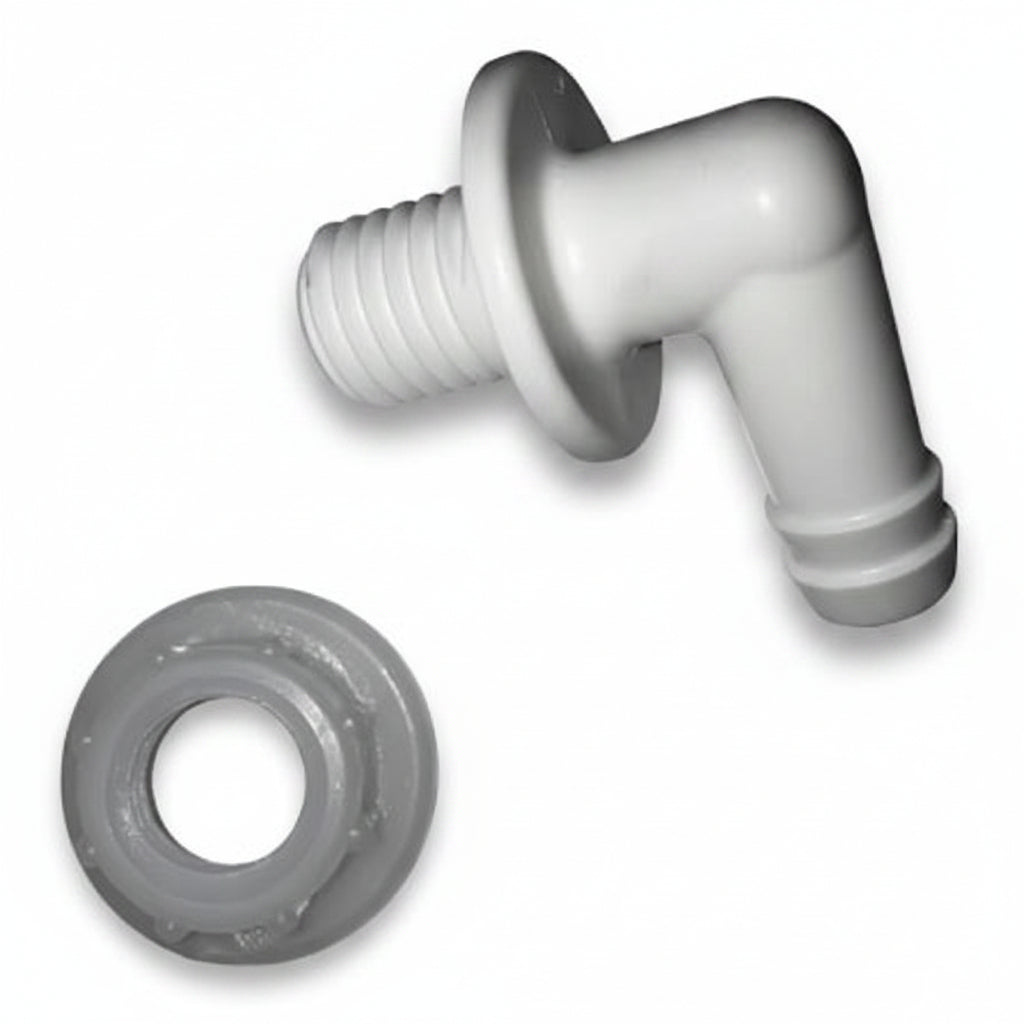

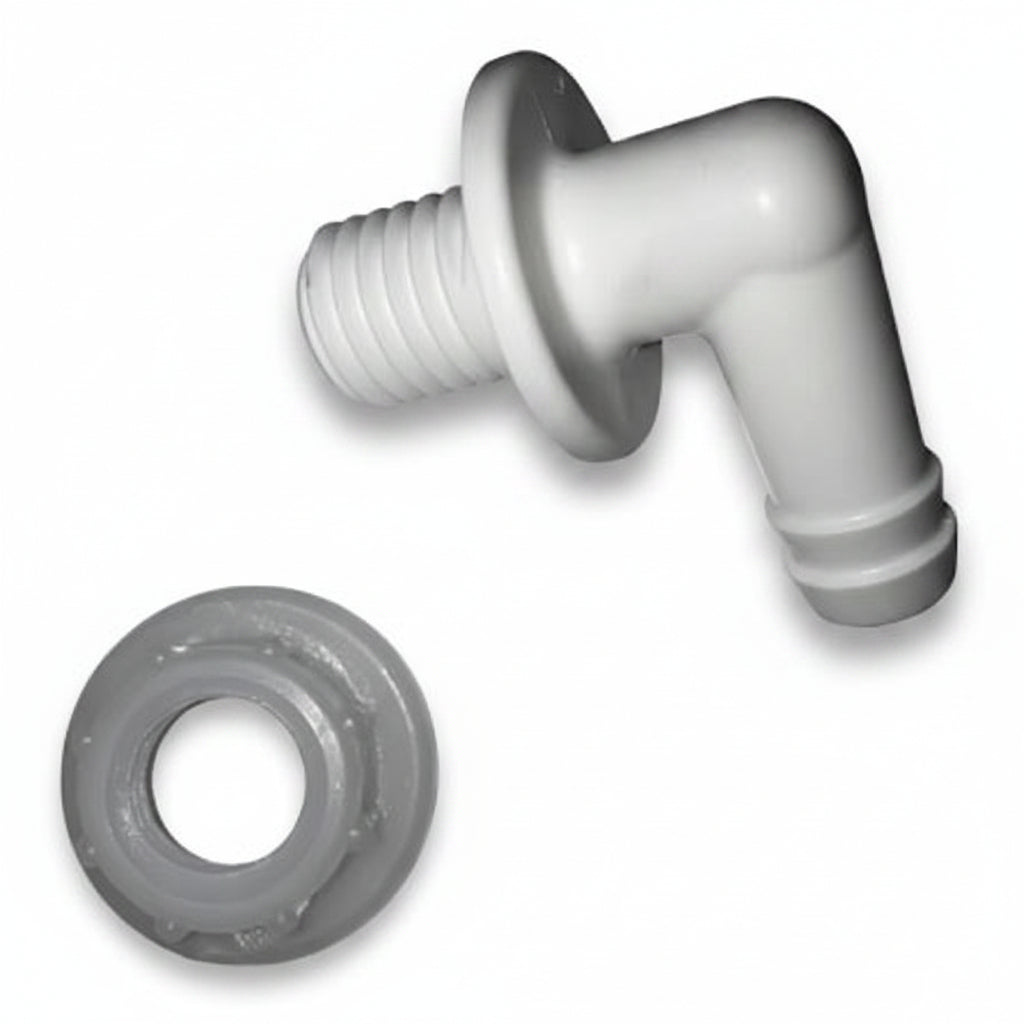

The Clack H1018 Brine Overflow Fitting provides a connection point for a 1/2-inch gravity overflow line on a water softener salt tank. This two-piece plastic assembly includes the overflow elbow and retaining nut.
Details & Dimensions
Details & Dimensions
The Clack Brine Overflow Fitting mounts through the side wall of a compatible water softener brine tank. It provides an emergency outlet for excess water if the brine level rises above its normal operating range.
Connect 1/2-inch inside-diameter tubing to the elbow and route it by gravity to a suitable floor drain or other approved drainage location. The overflow line helps direct excess water away from the brine tank but does not prevent an overfill or replace the brine safety float assembly.
Product specifications
- Manufacturer: Clack Corporation
- Part number: H1018
- Part type: Brine tank overflow fitting
- Connection size: 1/2 inch
- Colour: White
- Material: Plastic
- Installation location: Side wall of the brine tank
- Includes: Overflow elbow and retaining nut
- Tubing: Not included
Installation notes
Install the fitting in the designated overflow opening near the upper portion of the brine tank. Attach a separate 1/2-inch overflow tube and route it continuously downward to an approved drain.
The overflow tubing must remain unrestricted and should terminate with an appropriate air gap where required by local plumbing regulations. Do not connect the brine tank overflow line directly to the water softener control-valve drain line, as drain pressure could force water backward into the salt tank.
Important: This fitting provides an emergency overflow route only. If water is discharging through the fitting, inspect and repair the cause of the overfilling, such as a malfunctioning safety float, brine valve, refill control or control valve.
