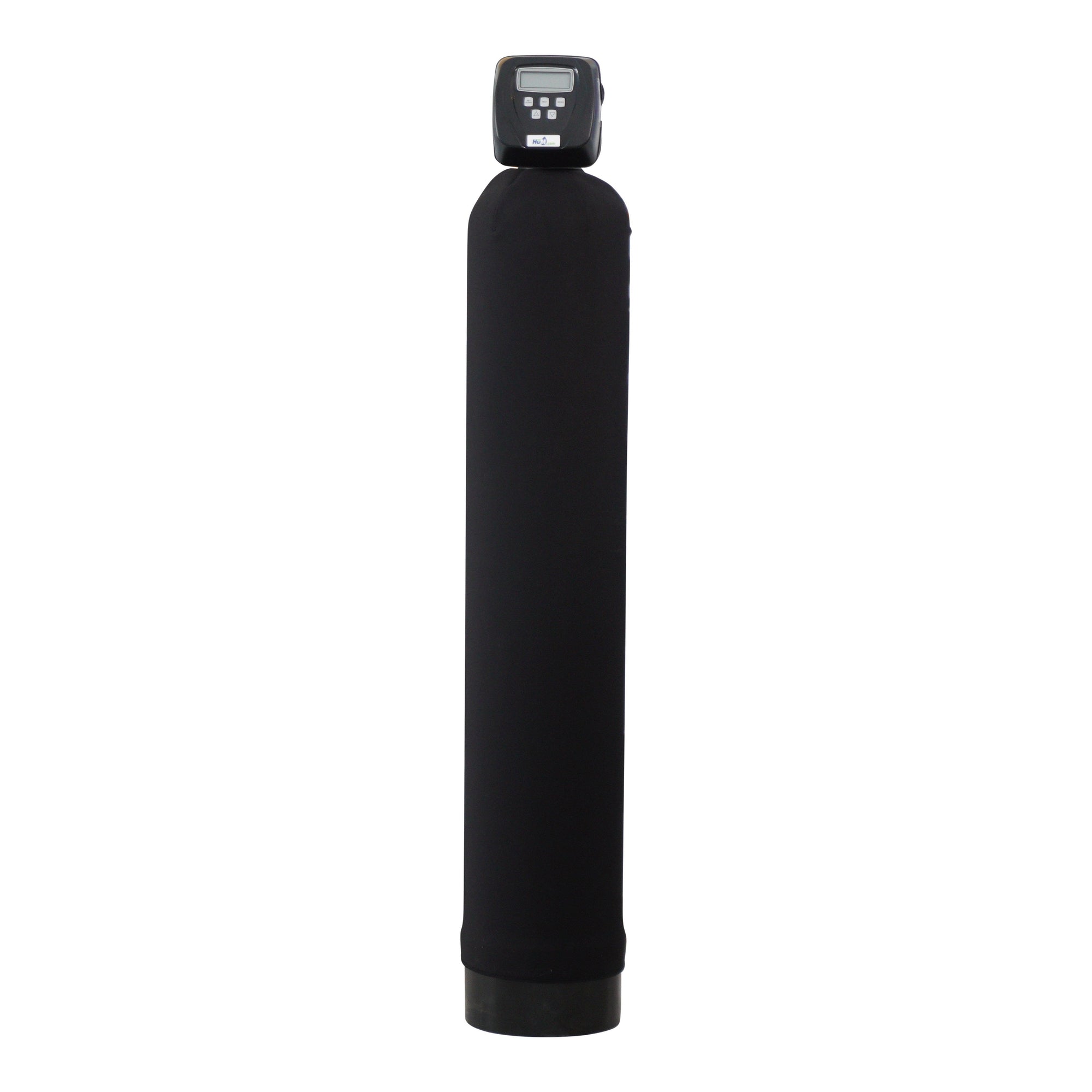

HUM Auto Backwashable Sediment Filter 1 Cubic Foot
HUM Auto Backwashable Sediment Filter 1 Cubic Foot
Sediment filter system with Clack Filter-Ag Plus® Media designed to capture dirt, rust, and particulates to protect equipment and improve water clarity. Requires a minimum flow rate of 7 GPM to backwash.
Click Here For Full Product Details
Click Here For Full Product Details
Experience superior filtration with this advanced sediment filter designed to remove turbidity and sediment particles as small as 5 microns from well or surface water sources. Ideal for enhancing water clarity and protecting your plumbing system from sediment buildup.
Media Type: Expanded aluminosilicate, a natural zeolite-like material known for its effective fine particulate filtration.
Primary Use: Targeted sediment and turbidity removal for clearer, cleaner water.
Long Lifespan: Engineered to offer durability and reliable performance, the media typically lasts between 5–10 years, depending on your water quality.

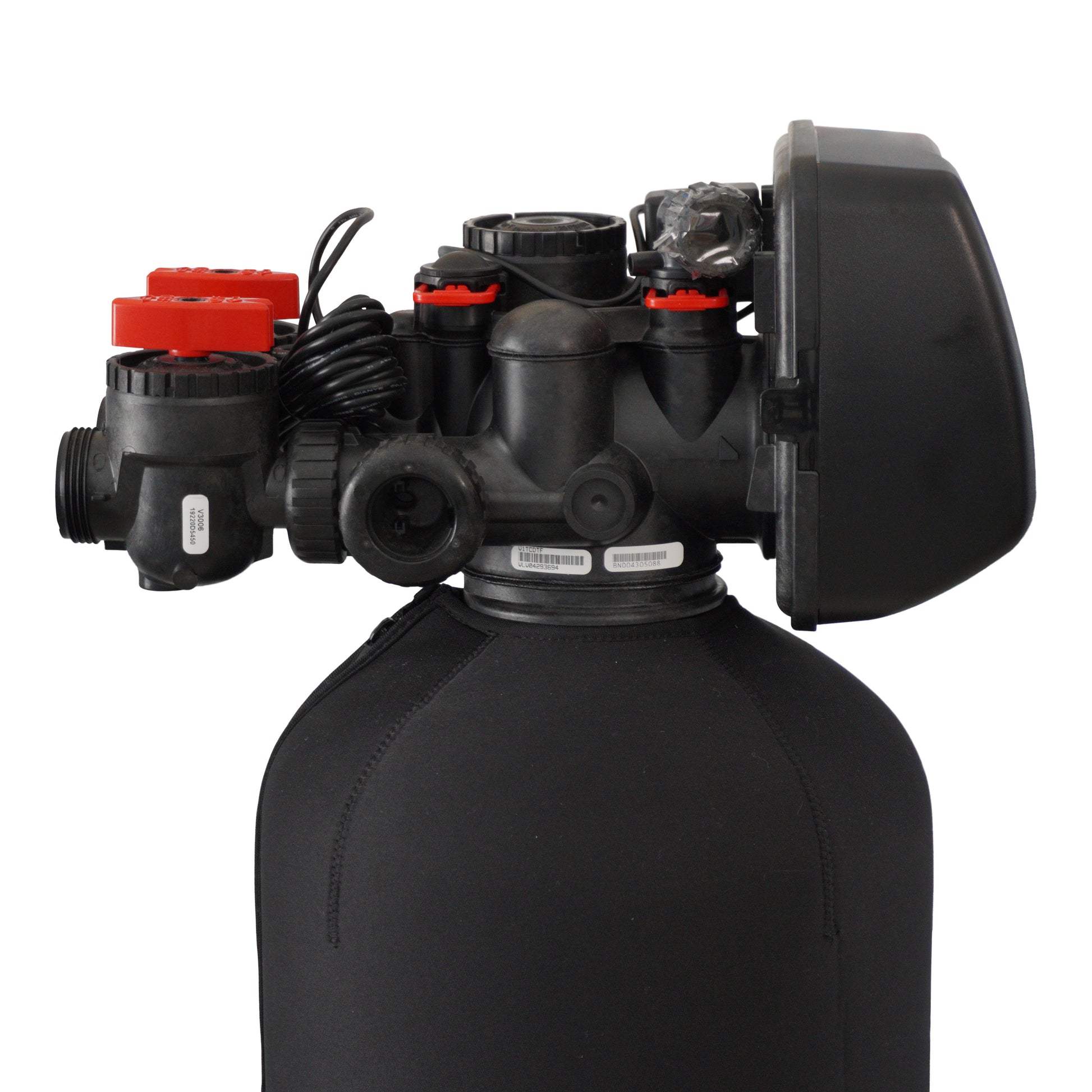

Equipped with a Made in USA Premium Water Treatment Valve and NSF-certified media, this system guarantees trusted quality and safety.
- ✔️ Pre-programmed electronic valve simplifies operation, making setup and adjustments effortless.
- ✔️ Maintains system configuration during power outages to ensure uninterrupted performance.
- ✔️ Electronically controlled for enhanced efficiency and dependable reliability.
- ✔️ Valve manufactured by Clack Corporation in the USA, assuring superior build quality.
- ✔️ Supports valve flow rates up to 27 gpm, accommodating different water demands.
- ✔️ System service flow rate of 8.0 gpm with a backwash flow rate of 6.5 gpm optimizes cleaning and filtration cycles.
- ✔️ Complete valve assembly can be disassembled in under 5 minutes without tools, facilitating easy maintenance and reducing downtime.
- ✔️ Designed without nuts, bolts, screws, or springs, streamlining servicing and minimizing potential failure points.
Physical Properties:
• Color: White to off-white
• Dry Bulk Density: 50 lbs/cu.ft
• Specific Gravity: 2.2 g/cc
• Mesh Size: 14x30
• Effective Size: 0.55mm
• Uniformity Coefficient: 1.8
• Hardness: 4-5 (Mohs Scale)
Operating Conditions:
• Compatible with a wide water pH range
• Maximum Water Temperature: 140˚F/60˚C (media can be steam cleaned for sanitation)
• Bed Depth: 24”–48” (optimal filtration at 36”)
• Freeboard: 50% of bed depth to allow proper expansion during backwash
• Backwash Flow Rate: 14–18 gpm/sq.ft.
• Backwash Bed Expansion: 30–40% of bed depth for thorough cleaning
• Service Flow Rate: 6–15 gpm/sq.ft., with intermittent peak flows up to 20 gpm/sq.ft.
• Influent water quality and effluent requirements may influence operating parameters
• Requires a gravel support bed for proper media support
• Important: Allow the media bed to saturate fully before initial backwash to ensure optimal performance.
Installation Note: Please install a 3/4" drain line to ensure efficient backwash drainage.
Tank Size: 10" x 54"
Product Number: WD CFNS10
Product Resources
Request Pricing & Availability
This product requires an inquiry before purchase due to brand policies. Complete the form below and our team will follow up promptly with pricing, availability, and any recommendations you may need.
HUM Auto Backwashable Sediment Filter 1 Cubic Foot
Experience superior filtration with this advanced sediment filter designed to remove turbidity and sediment particles as small as 5 microns from well or surface water sources. Ideal for enhancing water clarity and protecting your plumbing system from sediment buildup.
Media Type: Expanded aluminosilicate, a natural zeolite-like material known for its effective fine particulate filtration.
Primary Use: Targeted sediment and turbidity removal for clearer, cleaner water.
Long Lifespan: Engineered to offer durability and reliable performance, the media typically lasts between 5–10 years, depending on your water quality.
Equipped with a Made in USA Premium Water Treatment Valve and NSF-certified media, this system guarantees trusted quality and safety.
- ✔️ Pre-programmed electronic valve simplifies operation, making setup and adjustments effortless.
- ✔️ Maintains system configuration during power outages to ensure uninterrupted performance.
- ✔️ Electronically controlled for enhanced efficiency and dependable reliability.
- ✔️ Valve manufactured by Clack Corporation in the USA, assuring superior build quality.
- ✔️ Supports valve flow rates up to 27 gpm, accommodating different water demands.
- ✔️ System service flow rate of 8.0 gpm with a backwash flow rate of 6.5 gpm optimizes cleaning and filtration cycles.
- ✔️ Complete valve assembly can be disassembled in under 5 minutes without tools, facilitating easy maintenance and reducing downtime.
- ✔️ Designed without nuts, bolts, screws, or springs, streamlining servicing and minimizing potential failure points.
Physical Properties:
• Color: White to off-white
• Dry Bulk Density: 50 lbs/cu.ft
• Specific Gravity: 2.2 g/cc
• Mesh Size: 14x30
• Effective Size: 0.55mm
• Uniformity Coefficient: 1.8
• Hardness: 4-5 (Mohs Scale)
Operating Conditions:
• Compatible with a wide water pH range
• Maximum Water Temperature: 140˚F/60˚C (media can be steam cleaned for sanitation)
• Bed Depth: 24”–48” (optimal filtration at 36”)
• Freeboard: 50% of bed depth to allow proper expansion during backwash
• Backwash Flow Rate: 14–18 gpm/sq.ft.
• Backwash Bed Expansion: 30–40% of bed depth for thorough cleaning
• Service Flow Rate: 6–15 gpm/sq.ft., with intermittent peak flows up to 20 gpm/sq.ft.
• Influent water quality and effluent requirements may influence operating parameters
• Requires a gravel support bed for proper media support
• Important: Allow the media bed to saturate fully before initial backwash to ensure optimal performance.
Installation Note: Please install a 3/4" drain line to ensure efficient backwash drainage.
Tank Size: 10" x 54"
Product Number: WD CFNS10
